COATING

Made with SAHM Winding Technology.

Foto of an awning
Coating applications

Solutions for the Coating Industry

Whatever the weather – rain or sunshine, all-weather textiles enhance our quality of life and are used in countless ways. The practical awning on the balcony, the stylish outdoor set on the terrace or the comfortable hammock in the garden – thanks to coated textile and technical yarns, they all  are robust and durable. And home textiles, such as upholstery fabrics, wall coverings, carpets and mattresses, also benefit from the easy-care properties of these specially treated yarns. They can be used in so many ways – just like SAHM winding solutions.

When we say “Made with SAHM Winding Technology”, we give our promise that your coated yarns will be wound with the highest precision – for the manufacture of end materials of the highest quality.

TWINSTAR II Series

TWINSTAR II Series

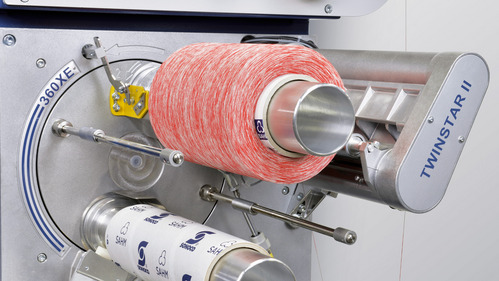

TWINSTAR II - The trusted industry leader

The first TWINSTAR model was introduced by SAHM to our customers 20 years ago. Since that time, the TWINSTAR has developed to become the top automatic winder for the production of High Performance Fibers across a wide range of applications.

Manufacturers value TWINSTAR for its compact and modular design, for the consistently outstanding operational performance it delivers, as well as for its 99.9 % bobbin changeover reliability. Due to the electronic data input of all winding and process parameters, the TWINSTAR also provides unsurpassed flexibility in product changes and recipe handling.

SAHM 240XE
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type SAHM 240XE HPF

SAHM 240XE

Precision Cross Winder
Titer
180 to 3000 dtex
(in a special version up to 12000 dtex)
Winding speed
Max. 350 m/min
Traverse length
250 or 300 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 240XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Quick and efficient product changes
    • Electronic input of all winding parameters
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    180 to 3000 dtex
    (in a special version up to 12000 dtex)
    Winding speed
    Max. 350 m/min
    Traverse length
    250 or 300 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Tube inside diameter
    82.55 or 94 mm
    Tube length
    290 or 330 mm
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    Yarn tension
    30 to 230 cN
    50 to 750 cN
    100 to 1200 cN
    Winding volume with a traverse length of
    250 mm: Max. approx. 18.7 dm3
    300 mm: Max. approx. 22.4 dm3
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
SAHM 260XE
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type SAHM 260XE HPF

SAHM 260XE

Precision Cross Winder
Titer
150 to 2500 dtex
1000 to 15000 dtex
(in a special version up to 36000 dtex)
Winding speed
Max. 500 m/min
Traverse length
250, 300 or 400 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 260XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quaility
    • Reproducible yarn package formation
    • Quick and efficient product changes
    • Electronic input of all winding parameters
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    150 to 2500 dtex
    1000 to 15000 dtex
    (in a special version up to 36000 dtex)
    Winding speed
    Max. 500 m/min
    Traverse length
    250, 300 or 400 mm
    Drive
    Frequency-controlled
    Frame
    1-, 2- or 3-tier
    Tube inside diameter
    76.2; 82.55; 90 or 94 mm
    Tube length
    290, 330 or 440 mm
    Package diameter
    Max. 320 mm (optional up to 450 mm)
    Winding ratio
    Electronic
    Yarn tension
    50 to 750 cN
    100 to 1200 cN
    Winding volume with a traverse length of
    250 mm: Max. approx. 18.7 dm3
    300 mm: Max. approx. 22.4 dm3
    400 mm: Max. approx. 29.5 dm3
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
SAHM 700XE
Parallel Winder
Winding head of a SAHM Parallel Winder, type SAHM 700XE HPF

SAHM 700XE

Parallel Winder
Titer
1100 to 30000 dtex
Winding speed
Max. 300 m/min
Traverse length
Max. 265 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 700XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Electronic input of all winding parameters
    • Quick and efficient product changes
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    1100 to 30000 dtex
    Winding speed
    Max. 300 m/min
    Traverse length
    Max. 265 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Package diameter
    Max. 355 mm
    Yarn tension
    100 to 1000 cN
    Tubes
    K200, K250 or K355*
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
SAHM 410E
Parallel Winder
Winding head of a SAHM Parallel Winder, type SAHM 410E HPF

SAHM 410E

Parallel Winder
Titer
1100 to 40000 dtex
Winding speed
Max. 350 m/min
Traverse length
Max. 300 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 410E
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Electronic input of all winding parameters
    • Quick and efficient product changes
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    1100 to 40000 dtex
    Winding speed
    Max. 350 m/min
    Traverse length
    Max. 300 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Package diameter
    Max. 355 mm
    Yarn tension
    100 to 1250 cN
    Tubes
    K200, K250 or K355*
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
SAHM two60
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type two60 big HPF

SAHM two60

Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
200, 250 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
SAHM two60
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Electronically controlled winding ratio
    • Quick and efficient product changes by electronic input of all winding parameters
    • Compact modular design with dual inverter technology
    • Yarn entrance with minimum contact points
    • Alarm management (yarn break, package diameter)
    • Meter counter/doffing signal
    • Highest flexibility and wide range of applications
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    200, 250 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    Up to 4 tiers
    Tube inside diameter
    82.55 or 94 mm*
    Tube length
    230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
SAHM two60 big
Precision Cross Winder

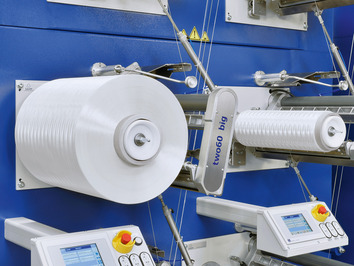

Winding head of a SAHM Precision Cross Winder, type two60 big HPF

SAHM two60 big

Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
300, 400, 450 or 500 mm*
*others on request.
Combination of all maximum values is not possible
More
SAHM two60 big
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Minimum maintenance expenditures
    • Quick and efficient product changes by electronic input of all winding parameters
    • Alarm management (yarn break, package diameter)
    • Meter counter/doffing signal
    • Central machine control by HMI II with 5,7" touchscreen
    • Pneumatic mandrel
    • Pneumatic yarn tension control
    • Semi-automatic threading via automatically pivoting traverse unit
    • Option as edge trim winder
    • Option as start-up winder
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    300, 400, 450 or 500 mm*
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    90, 94, 135 or 140 mm*
    Tube length
    230, 290 or 330 mm*
    Package diameter
    Max. 500 mm
    Winding ratio
    Electronic
    Package weight
    50 kg
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
